Bit the bullet - Pulled out the Laser



Neje Master 2, 20Watt Laser Engraver/Cutter, mounted up and in action.

I had talked to my brother about getting the laser engraver but I hadn't really mentioned that I hadn't done anything with it yet. I was a bit intimidated and I thought that I needed some software for the design element. He asked if I could engrave some wood blanks that he was cutting from branches from his backyard that would then serve as name plates at the reception tables. With a little pushing from my wife I agreed and I pulled it to see what I needed to do.

First things first I mounted it on a sturdy piece of 1/2" plywood that was leftover from another wood project. I finished the edges a bit to avoid splinters and gave the surface a quick once over with the sander as well. So much for the easy part.

Using the QR code on the side of the engraver I got to the instructions and downloaded the controller to my iPad. At this point I discovered that all I needed to do was bring in the image and the controller would actually create a cleaned up image for the laser. I think I spent less time getting the image and adjusting it than I took mounting the engraver to the base (which did involve a run to the hardware store for some #8 screws, washers and nuts). Then it was just adjusting the output of the laser to get a good image on the wood. Something to keep in mind with these types of laser is that the wattage stated is the power usage, the actual output is about 7 watts.

Full power, 100%, pretty much a charred mess. I could actually see flames!

50% power,  better but still a lot of charring but a lot less flaming

25% power, much better, edges still a little rough and the cut is deeper than it needs to be.

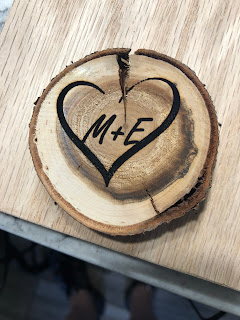

15%, nice and sharp, but figured I would try the lowest setting to reduce the depth of the engraving

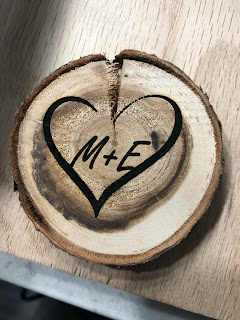

10% power, pretty much bang on. This is what I'm running with.



The image as created by our soon to be sister in law. I'm not sure why the letters are sharp and the heart is pixelated but I took a photo, loaded into the Neje software and it created a couple of images for me to choose from. It worked out quite nicely in the end. I had to darken a couple of areas to make a nicer cut at the top edges,



2 comments:

  1. Soon you will be banging out terrain bits!

    And hopefully you are wearing laser safe goggles since that is not in a case...

    ReplyDelete
    Replies
    1. Once I discovered how easy it was to operate, at least for simple designs, I'll definitely be using it more. I think I do markers first then see what kind of terrain bits I can create. Certainly doors and windows for Calamity and maybe walls as well. The actual cutting area is quite small but it is probably adequate smaller buildings or parts.

      Definitely wearing the goggles for this baby! I will have to find a pair that fits over my glasses better though.
