First Laser Project Complete!

Finishing a project is certainly a rare thing these days but since there was a very specific deadline involved I was definitely motivated to finish it on time! I engraved about 70, or so, of these blanks that my brother gave me. There are still 20+ blanks in the box. They get progressively smaller as my brother chopped his way through the branch. In theory, they only need 54 for the reception, I figure 30% or so over is probably about right! These took 3 days to engrave but I was mulit-tasking with other chores. I could have done it a bit faster if that was the only chore.

The hardest part of this was getting it centered on the blank. You can see a lot of variation of "centered" in the ones you can see in the first picture. Centering an asymmetrical design on an asymmetrical object using a very symmetrical "preview" square is a bit difficult. If these had all been the same size I would have just set up a couple of stop blocks and I could have dropped in each piece in the same location every time. In the end each one is definitely unique.

I really wanted to run all of these through the planer at least once or give them a quick sanding but my brother thought the cut right from the chop saw was smooth enough (Really? And we have the same mother? My mom is notorious for making sure her wood finishes are as smooth as glass, we went through a lot of sandpaper growing up). I thought I nice oil finish afterwards would have been nice but they are going out as is. They still look quite nice and a bit eclectic with the variations of "centering".

Definitely excited to try out some other ideas with this now that I have fully broken it in. I would like to find a good piece of design software that doesn't have an annual or monthly license fee, or doesn't cost an arm and a leg.

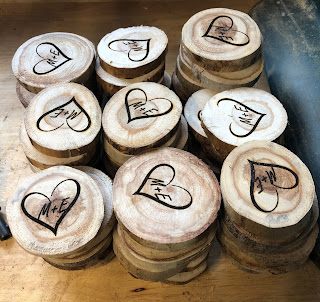

70+ laser engraved place name holder bases.

Same batch but now with holes. That was definitely the easiest part. Load up the drill bit in the drill press and drill holes till there are no bases left in the stack. Took about 15 minutes, maybe less.

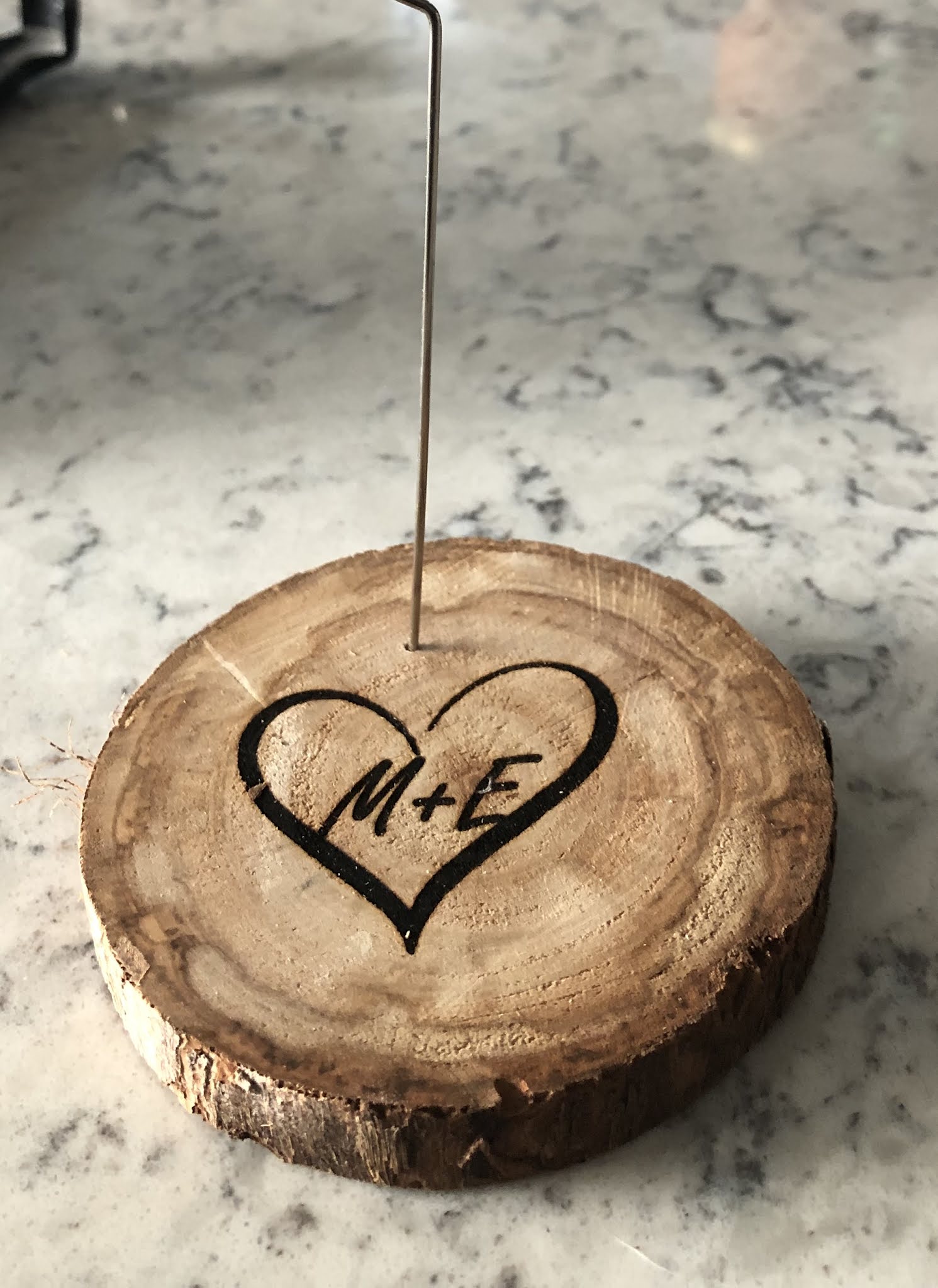

And the wire holder in place. Note the slight sundial effect from the morning light through the window.

Cartoon Wednesday



Bit the bullet - Pulled out the Laser



Neje Master 2, 20Watt Laser Engraver/Cutter, mounted up and in action.

I had talked to my brother about getting the laser engraver but I hadn't really mentioned that I hadn't done anything with it yet. I was a bit intimidated and I thought that I needed some software for the design element. He asked if I could engrave some wood blanks that he was cutting from branches from his backyard that would then serve as name plates at the reception tables. With a little pushing from my wife I agreed and I pulled it to see what I needed to do.

First things first I mounted it on a sturdy piece of 1/2" plywood that was leftover from another wood project. I finished the edges a bit to avoid splinters and gave the surface a quick once over with the sander as well. So much for the easy part.

Using the QR code on the side of the engraver I got to the instructions and downloaded the controller to my iPad. At this point I discovered that all I needed to do was bring in the image and the controller would actually create a cleaned up image for the laser. I think I spent less time getting the image and adjusting it than I took mounting the engraver to the base (which did involve a run to the hardware store for some #8 screws, washers and nuts). Then it was just adjusting the output of the laser to get a good image on the wood. Something to keep in mind with these types of laser is that the wattage stated is the power usage, the actual output is about 7 watts.

Full power, 100%, pretty much a charred mess. I could actually see flames!

50% power,  better but still a lot of charring but a lot less flaming

25% power, much better, edges still a little rough and the cut is deeper than it needs to be.

15%, nice and sharp, but figured I would try the lowest setting to reduce the depth of the engraving

10% power, pretty much bang on. This is what I'm running with.

The image as created by our soon to be sister in law. I'm not sure why the letters are sharp and the heart is pixelated but I took a photo, loaded into the Neje software and it created a couple of images for me to choose from. It worked out quite nicely in the end. I had to darken a couple of areas to make a nicer cut at the top edges,
